UCPA210 Plummer Block Housing Bearing PA210 Pillow Type Unit Cylindrical Bore Type

Brand Name : HDBB NACHI

Model Number : UCPA210

Certification : ISO9001 & GB307

Place of Origin : CHINA JAPAN

MOQ : 10 Pcs

Payment Terms : T/T , Western Union, RMB

Supply Ability : 80,000 Pcs per Month

Delivery Time : 5-7 Works days

Packaging Details : Industrial Packing Single Color Box OEM

Part Number : UCPA210

Housing Type : Pillow Block Unit

Bearing Type : Insert Ball Bearings

Bearing : UC210

Housing : PA210 Y

Housing Material : Cast Iron

Unit Weight : 2.25 Kgs

Fastening bolt hole typeing : Threaded

Contact Now

UCPA210 Plummer Block Housing Bearing PA210 NACHI Pillow-Type Unit, Cylindrical Bore Type With Set Screws UCPA Type

Short base pillow block ball bearing unit with extended inner ring and set screw locking, Japanese Industrial Standards.

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threaded holes for attachment bolts and is suitable for applications where the direction of rotation is constant or alternating. It has an inner ring extended on both sides and is locked onto the shaft by tightening two set screws on the inner ring, making it easy to mount. The units are compliant with Japanese Industrial Standards (JIS).

UCPA plummer block housing units size:

Bearing NO. Shaft Dia. Dimensions(mm) Bearing No. Housing No. KGS
d H L J M
(in.) (mm)
UCPA202 15 30.2 76 52 M10×1.5 UC202 PA204 0.63
UCPA202-10 5/8 30.2 76 52 M10×1.5 UC202-10 PA204 0.63
UCPA203 17 30.2 76 52 M10×1.5 UC203 PA204 0.63
UCPA203-11 11/16 30.2 76 52 M10×1.5 UC203-11 PA204 0.63
UCPA204-12 3/4 30.2 76 52 M10×1.5 UC204-12 PA204 0.63
UCPA204 20 30.2 76 52 M10×1.5 UC204 PA204 0.63
UCPA205-14 7/8 36.5 84 56 M10×1.5 UC205-14 PA205 0.8
UCPA205-15 15/16 36.5 84 56 M10×1.5 UC205-15 PA205 0.8
UCPA205 25 36.5 84 56 M10×1.5 UC205 PA205 0.8
UCPA205-16 1 36.5 84 56 M10×1.5 UC205-16 PA205 0.8
UCPA206-18 1-1/8 42.9 94 66 M14×2 UC206-18 PA206 1.2
UCPA206 30 42.9 94 66 M14×2 UC206 PA206 1.2
UCPA206-19 1-3/16 42.9 94 66 M14×2 UC206-19 PA206 1.2
UCPA206-12 1-1/4 42.9 94 66 M14×2 UC206-20 PA206 1.2
UCPA207-20 1-1/4 47.6 110 80 M14×2 UC207-20 PA207 1.7
UCPA207-21 1-5/16 47.6 110 80 M14×2 UC207-21 PA207 1.7
UCPA207-21 1-5/16 47.6 110 80 M14×2 UC207-21 PA207 1.7
UCPA207-22 1-3/8 47.6 110 80 M14×2 UC207-22 PA207 1.7
UCPA207 35 47.6 110 80 M14×2 UC207 PA207 1.7
UCPA207 35 47.6 110 80 M14×2 UC207 PA207 1.7
UCPA207-23 1-7/16 47.6 110 80 M14×2 UC207-23 PA207 1.7
UCPA208-24 1-1/12 49.2 116 84 M14×2 UC208-24 PA208 2.0
UCPA208-25 1-9/16 49.2 116 84 M14×2 UC209-25 PA208 2.0
UCPA208 40 49.2 116 84 M14×2 UC208 PA208 2.0
UCPA209-26 1-5/8 54.2 120 90 M14×2 UC209-26 PA209 2.2
UCPA209-26 1-5/8 54.2 120 90 M14×2 UC209-26 PA209 2.2
UCPA209-27 1-11/16 54.2 120 90 M14×2 UC209-27 PA209 2.2
UCPA209-28 1-3/4 54.2 120 90 M14×2 UC209-28 PA209 2.2
UCPA209 45 54.2 120 90 M14×2 UC209 PA209 2.2
UCPA210-30 1-7/8 57.2 130 94 M16×2 UC210-30 PA210 2.8
UCPA210-31 1-15/16 57.2 130 94 M16×2 UC210-31 PA210 2.8
UCPA210 50 57.2 130 94 M16×2 UC210 PA210 2.8
UCPA210-32 2 57.2 130 94 M16×2 UC210-32 PA211 2.8
UCPA211-32 2 63.5 140 104 M16×2 UC211-32 PA211 3.0
UCPA211-34 2-1/8 63.5 140 104 M16×2 UC211-34 PA211 3.0
UCPA211 55 63.5 140 104 M16×2 UC211 PA211 3.0
UCPA211-35 2-3/16 63.5 140 104 M16×2 UC211-35 PA211 3.0
UCPA211-35 2-3/16 63.5 140 104 M16×2 UC211-35 PA211 3.0
UCPA212-36 2-1/4 69.9 150 114 M16×2 UC212-36 PA212 4.24
UCPA212 60 69.9 150 114 M16×2 UC212 PA212 4.24
UCPA212-38 2-3/8 69.9 150 114 M16×2 UC212-38 PA212 4.24
UCPA212-39 2-7/16 69.9 150 114 M16×2 UC212-39 PA212 4.24
UCPA213-40 2-1/2 76.2 160 124 M16×2 UC213-40 PA213
UCPA213-213 65 76.2 160 124 M16×2 UC213 PA213
UCPA201S 12 30.2 70 48 M8×1.25 UC201S PA203
UCPA201-8S 1/2 30.2 70 48 M8×1.25 UC201-8S PA203
UCPA202S 5/8 30.2 70 48 M8×1.25 UC202S PA203
UCPA203S 17 30.2 70 48 M8×1.25 UC202-10S PA203
UCPA203-11S 11/16 30.2 70 48 M8×1.25 UC203-11S PA203
UCPA201 12 30.2 76 52 M10×1.5 UC201 PA204 0.63

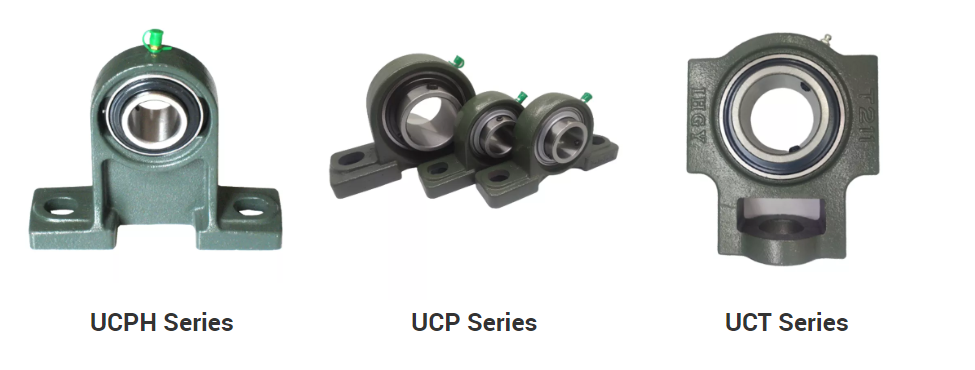

Bearing Unit Types :

UCP... 200 300 Series

UCT... 200 300 Series

UCF... 200 300 Series

UCPA ... 200 300 Series

UCFL ... 200 300 Series

UCFC ... 200 300 Series

UCPA210 Plummer Block Housing Bearing PA210 Pillow Type Unit Cylindrical Bore Type

UCPA210 Plummer Block Housing Bearing PA210 Pillow Type Unit Cylindrical Bore Type

UCPA210 Plummer Block Housing Bearing PA210 Pillow Type Unit Cylindrical Bore Type

For more PILLOW BLOCK BEARINGS size, pls contact us freely.
